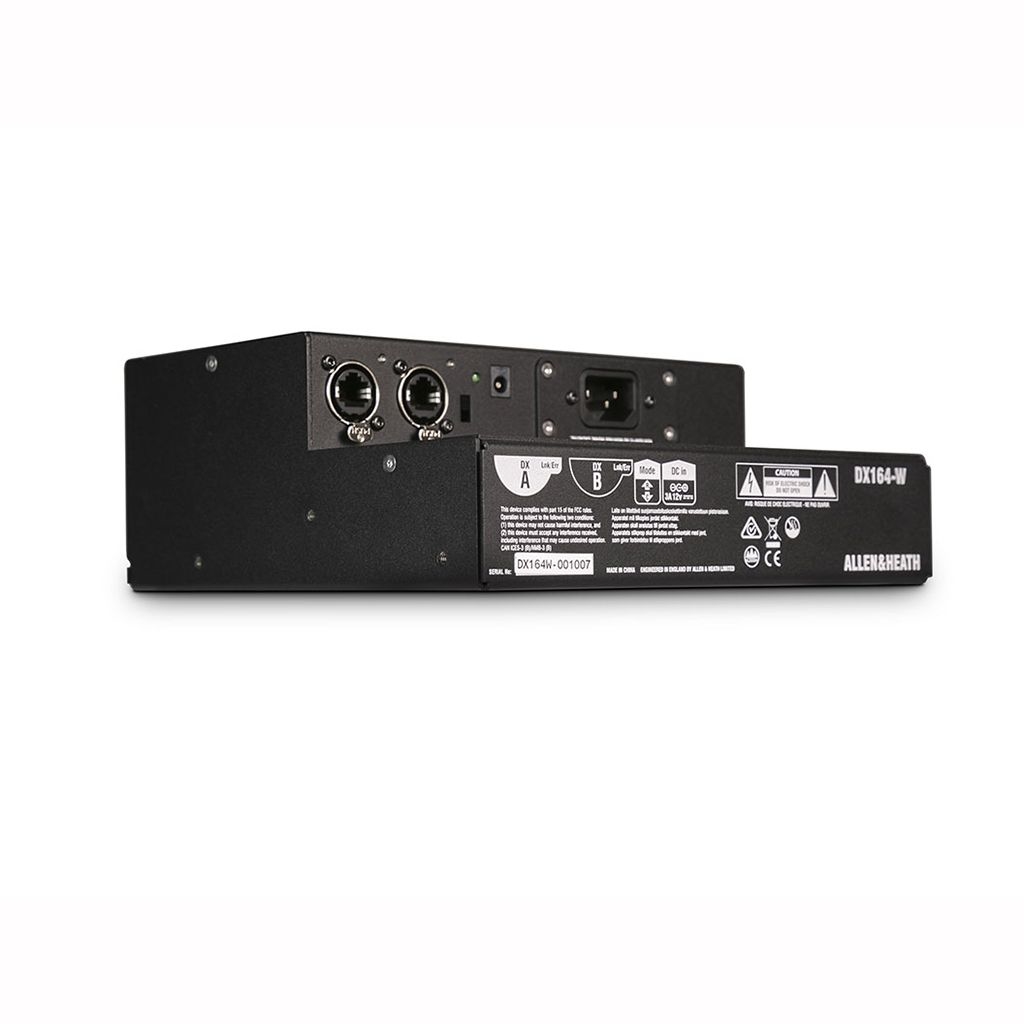

The DX164-W is a wall mountable expander that adds remote I/O to a dLive, Avantis or SQ mixer, or to the AHM-64 audio matrix processor.bEach DX164-W features 16 mic preamps with independent Phantom Power LED indicators, plus 4 XLR line outs.
The Expander’s design allows for wall mount operation or, alternatively, installation in a stage “Dip Trap” making it perfect for fixed installations.
• Designed for Wall Mount or Dip Trap installation
• 16 balanced Mic Preamps on XLR
• Phantom Power LED per Input
• 4 balanced XLR Line Outs
• Locking EtherCon ports
• Daisy chain or redundant audio connection
• Can fit in a standard NEMA box (custom brackets required)
• Compatible with ACE Backstage 174SLBK stage pocket system
• 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
• DC power can be used as redundant power supply
• 96kHz converters
