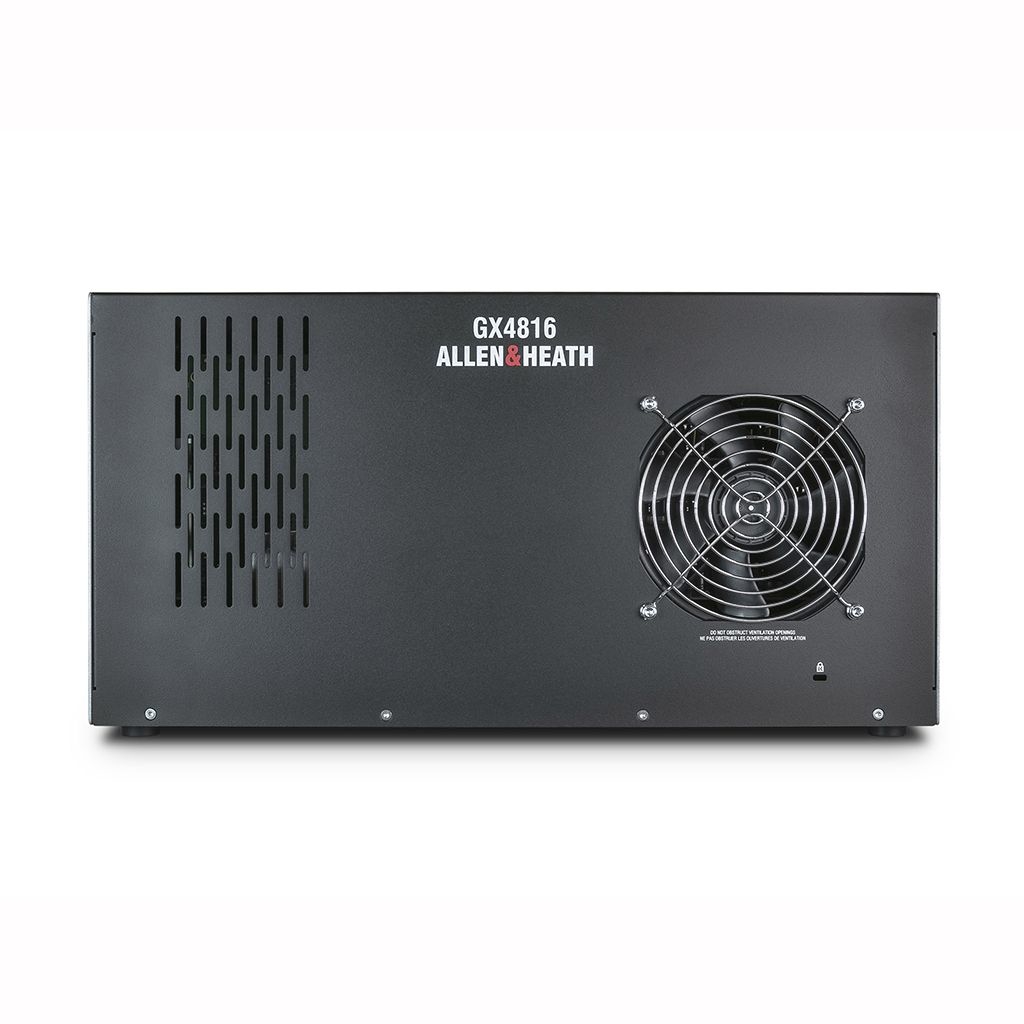

GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive mixing systems, and for the AHM-64 audio matrix processor.
• 48 Mic Preamps on XLR with Phantom Power status LEDs
• 16 XLR Line Outs
• 96kHz operation
• DX1 Port – compatible with a single DX32, or up to 2 DX168/DX164-W expanders
• DX2/ME Port – compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system (not compatible with AHM-64 or dLive).
• Compatible with SQ, Avantis, AHM-64 and dLive (dLive requires firmware V1.86 onwards)
• Multiple GX4816 can be added to a system:
- Up to 2 GX4816 units can be added to a SQ system
- Up to 3 GX4816 units can be added to an Avantis system
- Up to 5 GX4816 units can be added to a dLive S Class system
- Up to 3 GX4816 units can be added to a dLive C Class system
• Rack-mounted (5u) or shelf/floor operation
• Plug and Play – no IP addressing required
• Compatible with CAT5e (or higher) cables of up to 100m
• Locking EtherCon ports
