The RME AVB Tool combines MADI and deterministic AVB networked audio with four high-precision microphone, instrument and line level inputs, plus headphone and separate line level outputs. Following RME’s concept of maximum versatility and connectivity, 128 channels of MADI I/O have been also added to this half rack 19” device.
8-Stream Gigabit AVB

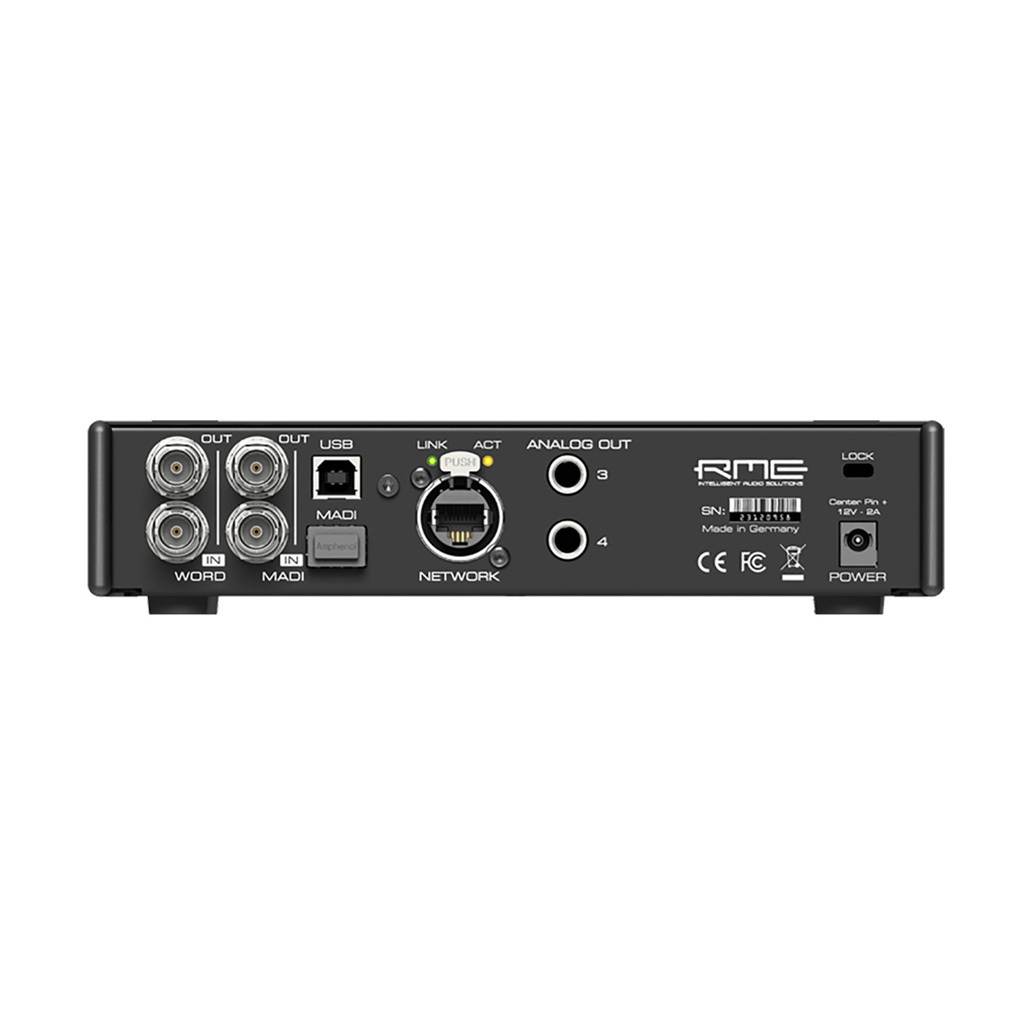

On the AVB side, the number of streams available in the RME AVB core have been doubled to eight streams in AM824 (legacy AVB) or high-performance AAF (MILAN compatible) format - with configurable size and format per stream. Up to 128 audio channels can be sent and received over AVB in total across all streams. The AVB Tool has the same input stages as the first four channels of the 12Mic – successfully combining the components found in the Fireface UFX II and UFX+ into a new AD converter, extended with switchable High Impedance, balanced line level on the TRS, and two balanced line level outputs at the rear for monitoring.
Plug’n’play - rapid user interaction
Control all device states directly from the front panel with an encoder and buttons for convenient, direct access to all features. RME AVB devices can also be fully remote controlled via a web-interface on any network link (including wirelessly over Wi-Fi), allowing for the rapid creation of gain groups, phantom power switching, and routing of signals to headphones for monitoring. The integrated routing matrix allows for quick routing of any analog inputs straight to the headphone output, as well as all digital signals and AVB streams. As such, problem-solving of signals, clocking, connectivity or other issues is both simple and straight-forward!
SteadyClock FS - Reference class Digital Clocking
In digital audio, the clock frequency is an essential factor, as it creates the correlation between the audio bits and the time reference. Unfortunately, the clock frequency is not always as stable as desired. The AVB Tool offers full SteadyClock FS performance for lowest jitter and highest jitter immunity. Excellent performance in all clock modes and High Quality Analog Conversion to hear your mix as it is. Digital format conversion in RME products are done without any loss or degredation,and SteadyClock FS ensures your sonic image will never experience degredation. This helps to optimize recordings and mixes because the soundstage has more depth and clarity.
RME AVB Tool Network Controllable Preamp Features
